High Speed 1+1 Ear-loop Face-Out Type Medical Mask Machine
MGA-MSK-400-S8
Features
The High Speed 1+1 Ear-loop Face-Out Type Medical Mask Machine by Ming Jilee operates at 80–110 pieces per minute and supports registered printing cuts for precise designs. It has four unwinding stations for feeding non-woven and melt-blown materials, and a nose bridge flattening device for superior quality. The machine uses a high-quality Taiwan ultrasonic welding device for excellent welds, with servo-controlled ear-loop cutting for speed. An automatic conveyor facilitates the smooth transition of counted and stacked masks to packaging.
Gallery
Specifications
swipe your finger
| Model | MGA-MSK-400-S8 | |
| General Machine Specifications | ||
| Machine Dimension | 4,500 (L) x 2,430 (W) x 1,988 (H) mm | |
| Power Consumption | 9 kw | |
| Net Weight | 800 kg | |
| Power Input | 220V, single phase | |
| Servo Motor | 8 sets | |
| Machine Performance | ||

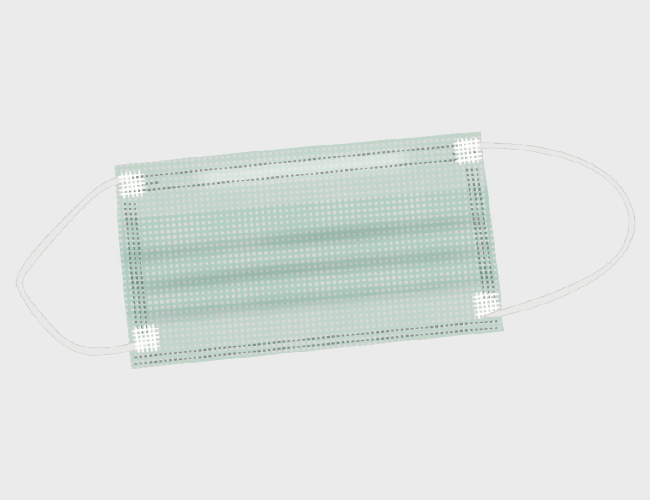

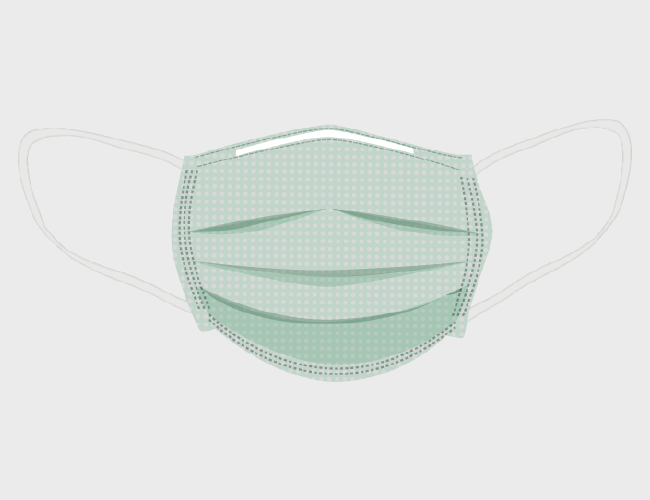

| Mask Size (machine is only able to produce 1 size) | 175 x 95 mm or 145 x 95 mm | |
| Output | 65 - 95 pcs/min | |
