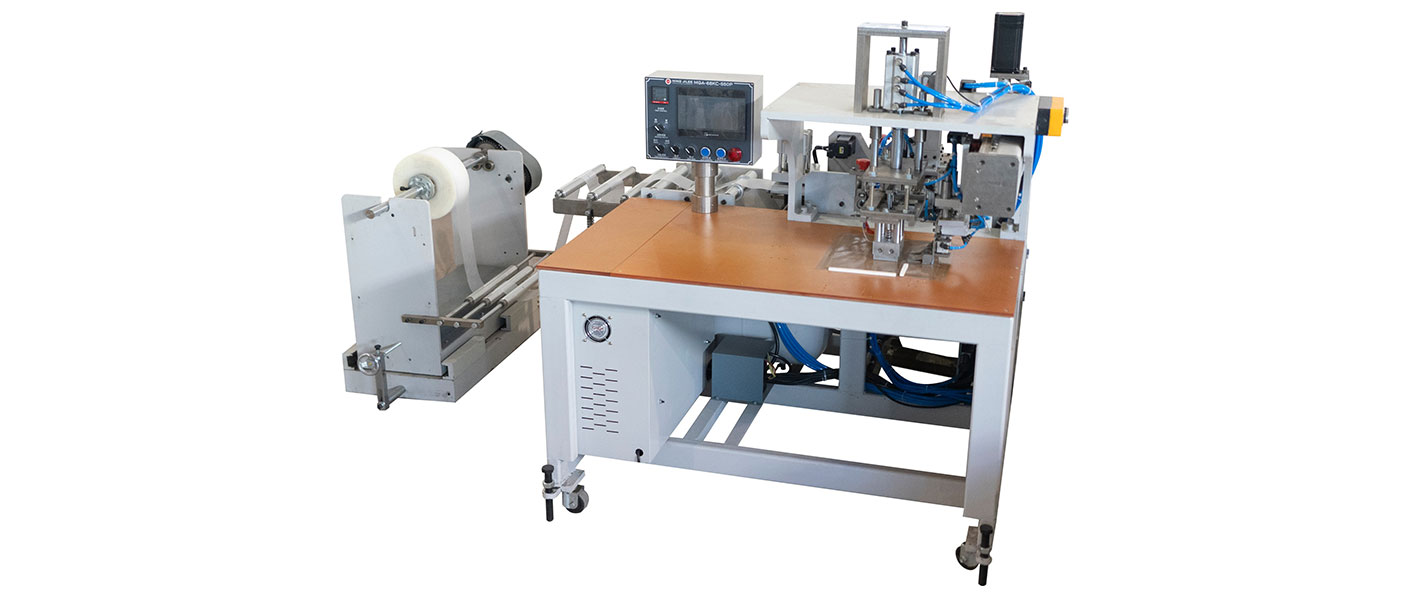

Auto Paper Inserting and Window pocket Sealing Machine

MGA-68KC-550P

Auto Paper Inserting and Window pocket Sealing Machine

Features

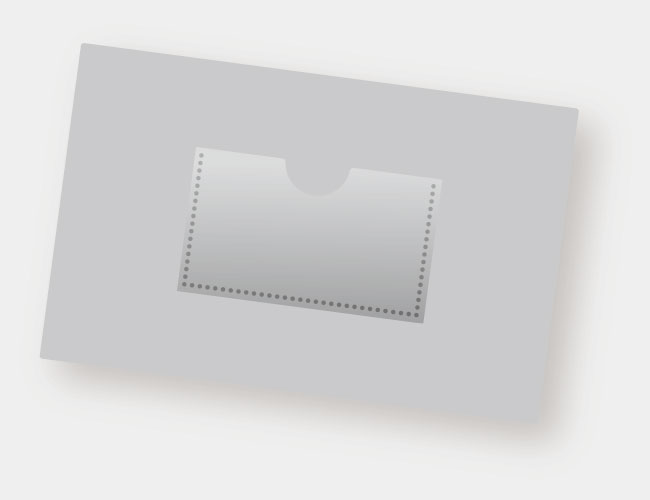

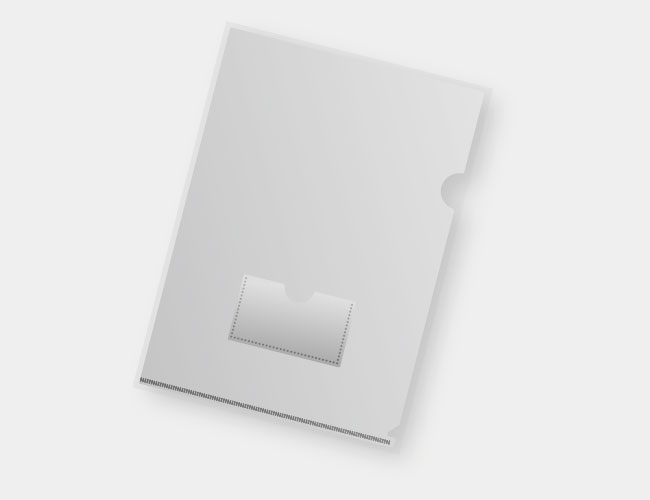

Our Window Pocket Sealing Machine is design for increasing the manual production for the name card heat welding production.

you can just prepare the window pocket material in roll form, then machine cut the name card shape and heat sealing automatically. The operator just need to put the target item on this window pocket heat sealing machine, then you can get the finished product.

Machine Performance

  1. Target Item: All Kind of Stationery Item
  2. Thickness of film : 0.08 – 0.2 mm
  3. Mechanical Speed : 7 - 15 cycle/min

Specifications

swipe your finger

Model MGA-68KC-550P
General Machine Specifications
Machine Dimension 1,800 (L) x 1,200 (W) x 1,500 (H) mm
Machine Weight 750 kg
Required Power 5 kw
Machine Performance
Finished Product Manual Feeding
PP Plastic Thickness Range 0.1 - 0.2 mm
Paper 80 - 200 GSM
Output
a. With Only Plastic Pocket
b. With Paper Inserting
10 - 25 pcs/min Depend on Operator's Speed
8 - 12 pcs/min Depend on Operator's Speed
