J Shape Banana Bag Holes Punching and Sealing Machine

MGA-17B-700SP (CPP)

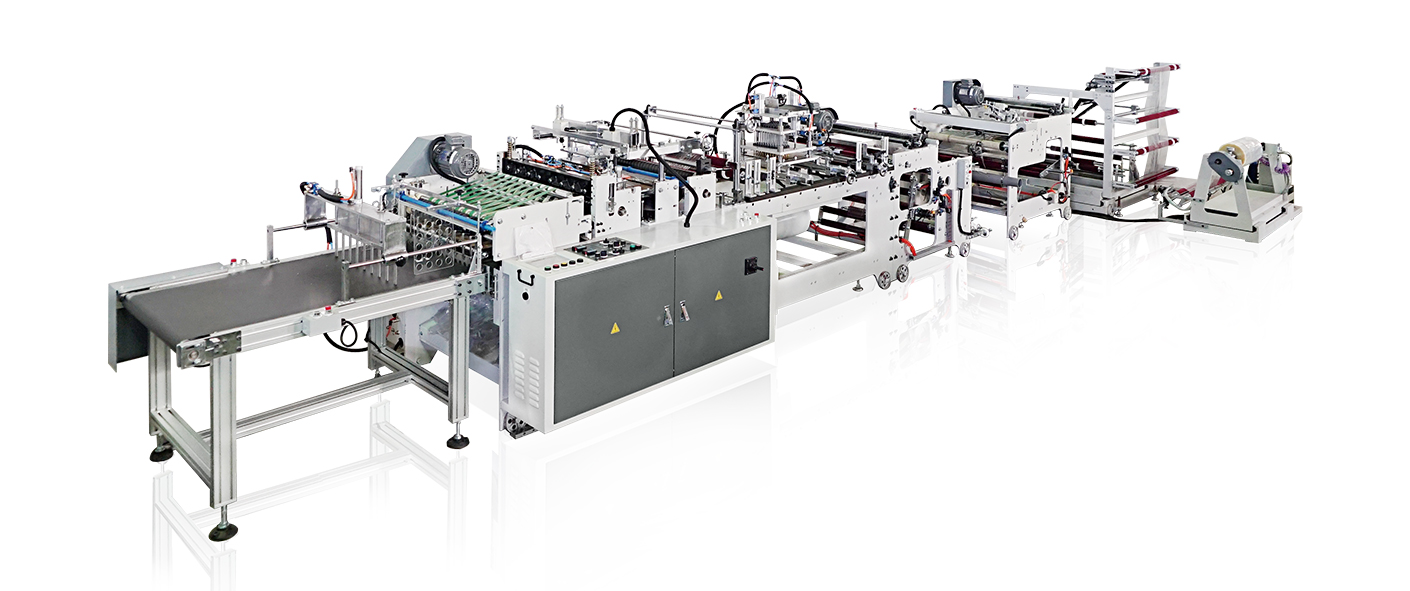

J Shape Banana Bag Holes Punching and Sealing Machine

Features

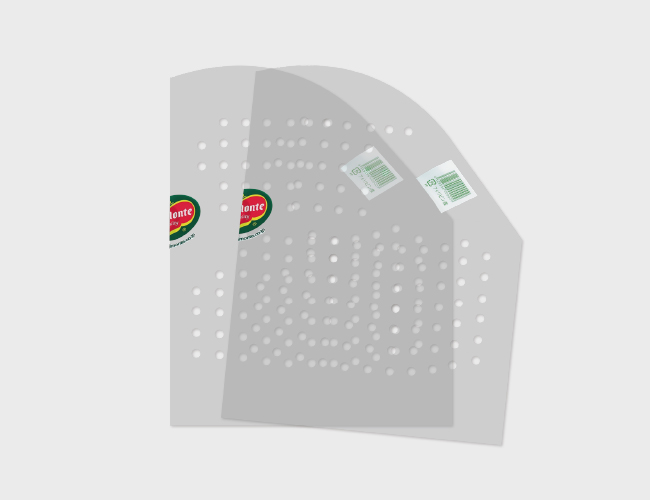

The J Shape Banana Bag Holes Punching and Sealing Machine by Ming Jilee is equipped with a Japan-made servo motor for precise size control of CPP, BOPP, PE, and J-shape banana bags. The machine’s unwinding station uses a hydraulic edge position control system to ensure accurate material feeding, resulting in high-quality banana bags. It features a dancing roll station to maintain optimal tension during production. Ming Jilee offers a customizable punching station that creates holes directly in the banana bags using a USA-made puncher, renowned for its durability. Additionally, the machine's high-quality curved heat sealing mold cuts the banana bags, with waste automatically removed after cutting.

Specifications

swipe your finger

Model MGA-17B-700SP (CPP)
Feeding Materials P.P./P.E. Single layer or tube blown film
Single Layer Film Thinkness 0.03 - 0.12 mm
Effective Bag Width 250 - 400 mm
Effective Cutting (Feeding) Length 150 - 420 mm
Output 80 - 120 pcs/min
Machine Dimension 9,918 (L) x 2,266 (W) x 1,400 (H) mm
Machine Weight 3,264 kg
Required Power 8 kw
