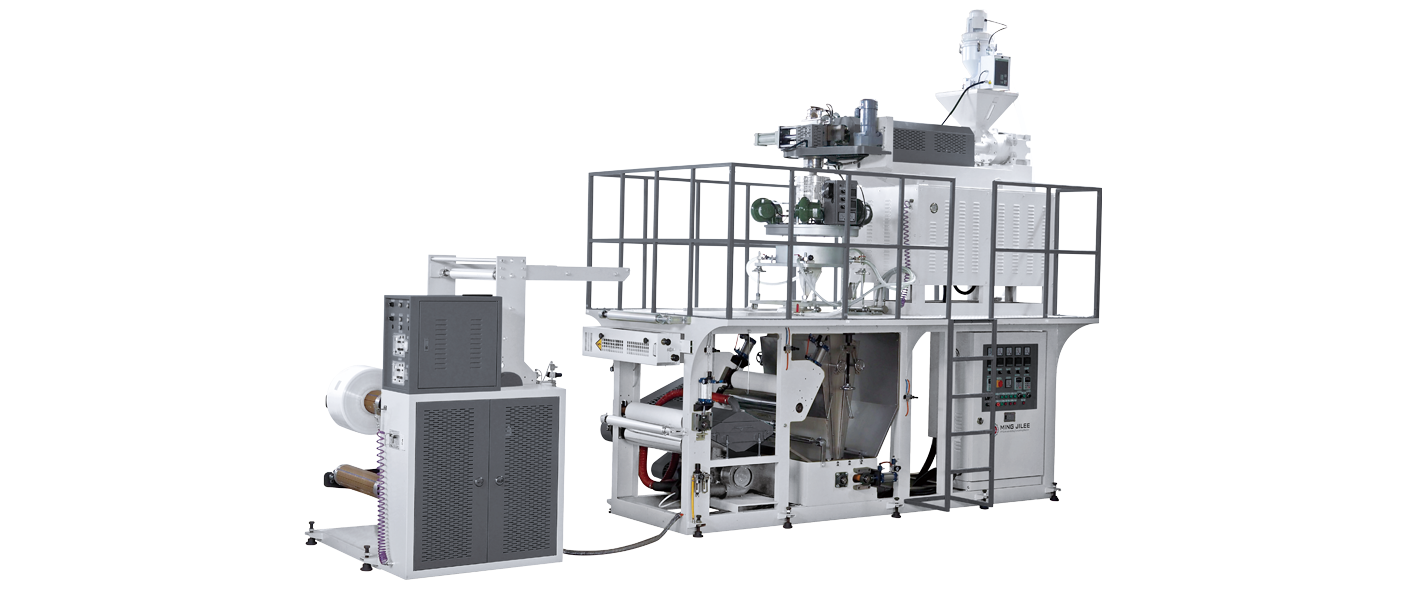

P.P Blown Film (Tubular) Extrusion Line
MGPP-Serial
Specifications
swipe your finger
Model | MGPP-45 | MGPP-55 | MGPP-65 | MGPP-75 |
General Machine Specifications | ||||
Applicable Resin | P.P. granules | |||
Thickness Range | 0.02 - 0.08 mm | |||
Lay Flat Film Width | 100 - 400 mm | 150 - 550 mm | 300 - 650 mm | 550 - 950 mm |
Output | 10 - 35 kg/hr | 20 - 50 kg/hr | 20 - 60 kg/hr | 20 - 100 kg/hr |
Machine Dimension | 4 (L) × 1.6 (W) × 3.4 (H) m | 4.5 (L) × 2 (W) × 4.3 (H) m | 6.36 (L) × 2.1 (W) × 4.7 (H) m | 7.52 (L) × 2.2 (W) × 5.2 (H) m |
Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. |
