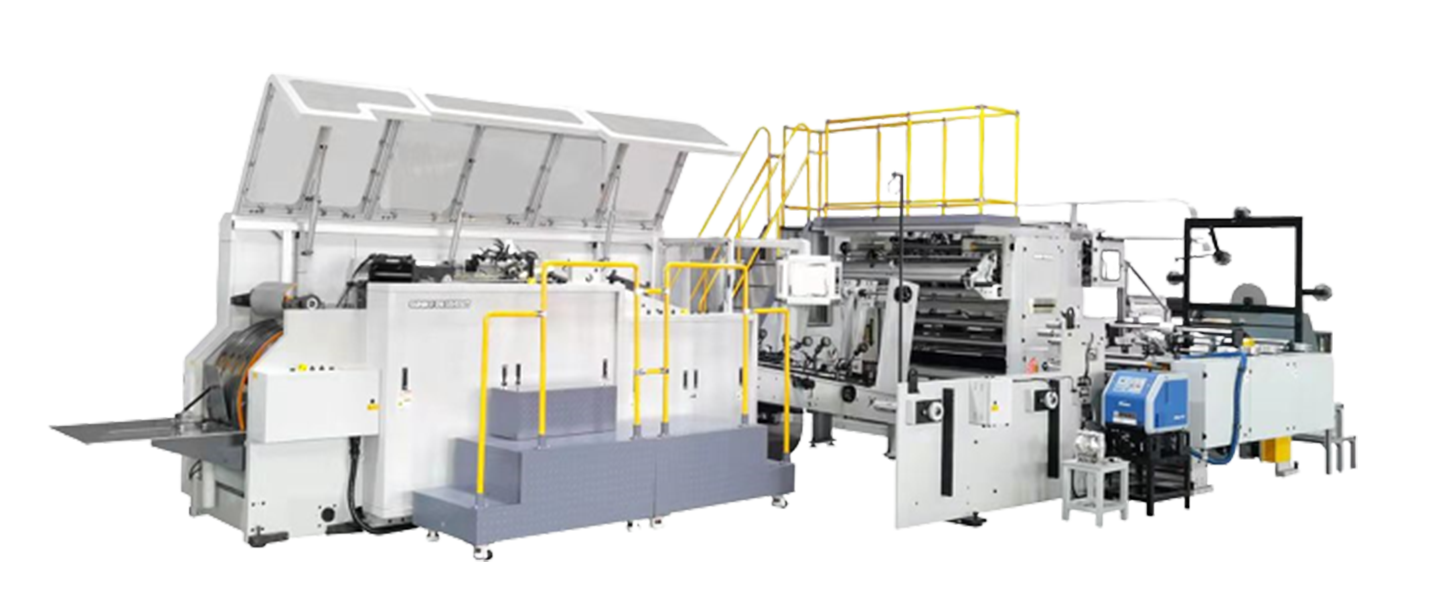

Twisted Handle Shopping Bag Making Machine
TWH-550TB-6
Specifications
swipe your finger
| Model | TWH-550TB-6 | |
| Paper Roll Width Range | 690 - 1510mm (670-1510mm without handles) | |
| Max. Paper Roll Diameter | ≤1500mm | |
| Material Core Diameter | 3inch (76mm) | |
| Paper Thickness | 80-150gsm | |
| Tube Cut Off Length | 360 - 650mm (360-770mm without handle) | |
| Bag Body Width | 230 - 540mm (220-540mm without handle) | |
| Bottom Size | 100 to 280mm | |
| *Max. Speed |
Without handle: 250 bags/min
|
With handle: 80 - 130 bags/min
|
| Bag Dimensions, Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis Weight of Paper Can Affect Machine Speeds | ||
| Total Power | 37.2kw | |
| *Weight of Machine | ≈20500kg | |
| Overall Dimension | L 16,200 mm x W 6,000 mm x H 2,500 mm | |
| Twisted Paper Cord Handle Dimensions |
|
A. Handle Length (Variable): 115/125/140/150mm B. Patch Width: 40 - 50mm C. Handle/Patch Length: 190.5mm D. Handle Width:95mm |
| Paper Cord Handle Material Specifications (Suggested) |
a: Paper Patch Width ( Master Roll ) b: Patch Paper Basis Weight c: Patch Paper Roll Diameter d: Patch Paper Roll Core Diameter e: Paper Cord Diameter (suggested) |
80 - 100 mm 90-135g/m² ( recommend:110-120gsm) 1200mm Max. 76mm 3 - 4.5mm |
| Bottom Folding |
Main Machine and Bottom Forming Section |
|
