- Special designed for the labeling part of the hard cover. The standard machine can do “U” shape sealing with the paper loading automatically.
- The pocket is sealed by heating mold.
- Machine is equipped Electrostatic charging generator which imported from USA.
- Inserting the paper by operator is difficult job, the factory can save the labor cost and get high output from MING JILEE machine.

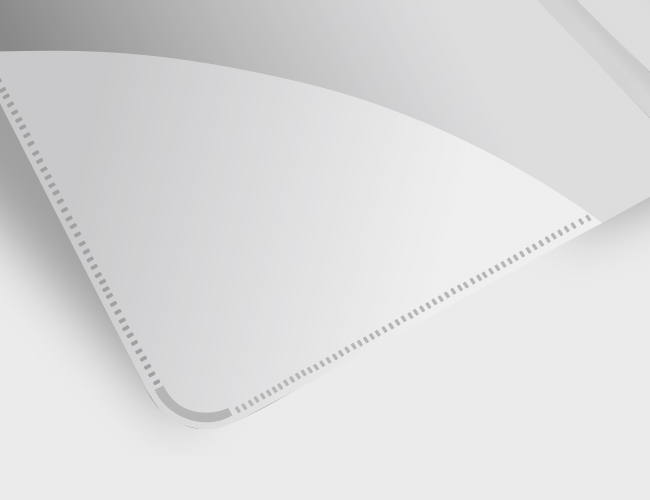

- The optional equipment allow factory to produce the triangle pocket on the clip file, display book, clear book.
Auto. Paper Feeding and Pocket Sealing Machine
MGA-68F-550A
Features
Specifications
swipe your finger
| Model | MGA-68F-550A | |
| Feed material | Pocket film material, Paper and hard cover | |
| Pocket sealing size range | 100 - 330 mm (H) x 100 - 240 mm (W) | |
| Sheet size range | 300 - 340 mm (H) x 240 - 580 mm (W) | |
| Output | 10 - 15 pcs/min (depend on pocket size) | |
| Machine dimension | 4,200 (L) x 3,700 (W) x 2,000 (H) mm | |
| Optional equipment | (1) The complete mold for triangle pocket | |
| Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. | |
